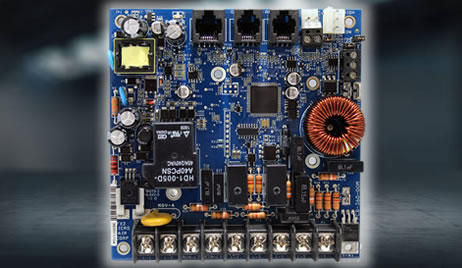

FX-2 Control Board

FX-2 Control Board






The FX-2 Control Board is the most advanced and finest cabin control manufactured by Micro-Air in the marine HVAC industry. It not only provides support for the latest FX-2 control displays, it supports all of the legacy FX-1 control displays as well.

Features:

-- Universal 115/230 VAC 50/60 Hz power supply
-- 2HP compressor output and 1/2 HP sea water pump output
-- Reversing valve AC output controls either valve or electric heater
-- High and low refrigerant pressure switch inputs
-- 8-pin RJ-45 Display Interface
-- Alternate (remote) air temperature sensor
-- Outside air temperature sensor
-- Service (condenser) temperature sensor for Pump Sentry
-- Built-in CAN bus support (rev K and newer)
-- Built-in support for up to 2 combo temp/humidity sensors for cabin humidity control or for FAMU operation (rev K and newer).
-- Optional daughterboards for DC blowers and EasyStart

Model Number(s):
-- ASY-360-XM1 (standard board only)
-- ASY-360-XM3 (standard board in metal elec box)
-- ASY-360-XM4 (w/ DC Blower d/b & in metal elec box)
-- ASY-360-XM5 (w/ EasyStart d/b)
-- ASY-360-XM6 (w/ EasyStart d/b & in metal elec box)
